The StealthMiner JPro+ is a ~20-32TH SHA256 miner with average performance of ~24-26 J/T in the 500-800W operating range. This is standard performance but is not guaranteed as individual boards may vary on chip efficiencies that can be achieved. ** For reference, stock efficiency from Bitmain on this board is 27.5 J/T.

The JPro+ Hashboards and APW3++ PSUs used are recycled from commercial operations that are swapping out hardware for the latest and greatest. The machines are tested prior to shipment so ensure to change pool information before operating.

In this design, they are down clocked for efficiency gains, longevity of hardware, sound attenuation, and quite simply... safely operating them on any North American residential 120V circuits where standard household loads may already exist.

This type of miner is known to the DIY community as a "Loki Rig" since the tech that allows us to operate on 120V PSU is the Pivotal Pleb Loki kit.

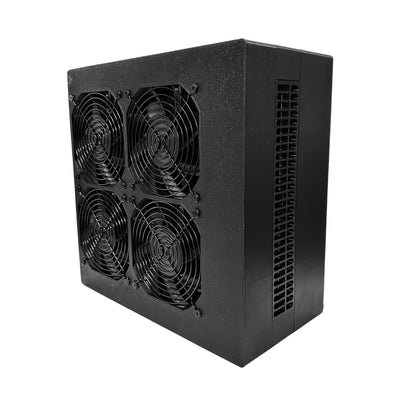

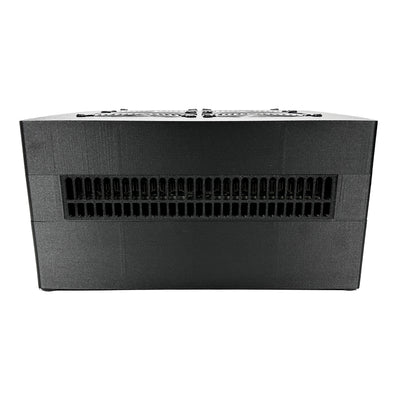

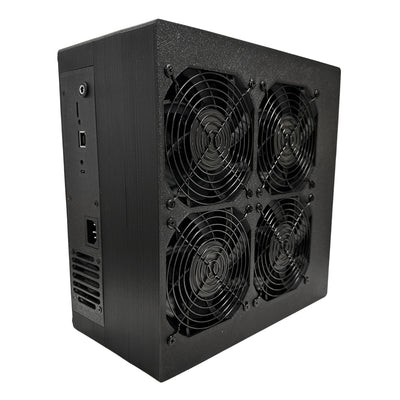

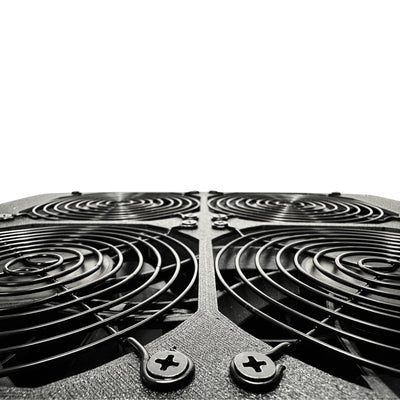

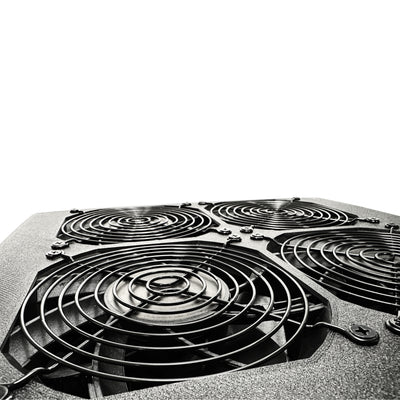

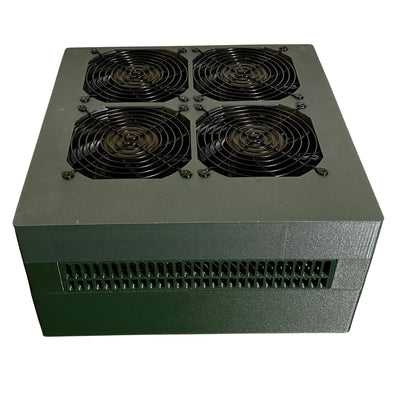

The StealthMiner design is the @satstackingpleb take on cooling a single board Loki rig. Instead of moving the air parallel over the hashboard, I am stripping the air from the chip-side of the board in a perpendicular manner where air is still forced to move over the non-chip-side of the board as well. I have noticed tighter operating temperature gradients with this cooling configuration and this is also achieved under 60dB (normal conversational tones).

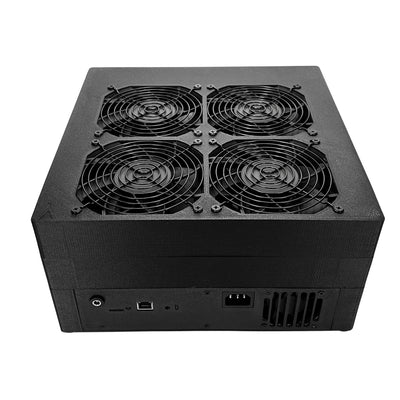

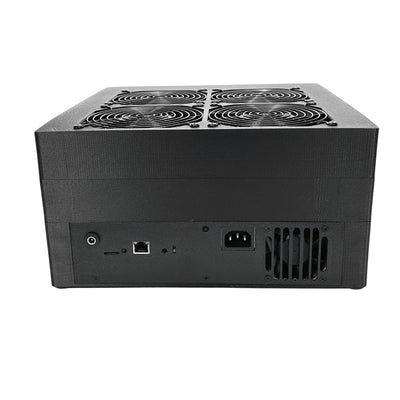

This model is powered by the AMLogic A113D Control Board running LuxOS firmware with standard mining I/O on the rear of the miner.

C13 Female 110-240V 50/60 HZ (14AWG NEMA 5-15P 3ft cord included)
RJ45 Ethernet (ethernet cable NOT included)
BONUS: 5V 5A Barrel Jack (5.5 x 2.1mm) for Vonets Wifi Bridge or <5A Bitaxe operation!

There will be a 14 day warranty to cover DOA arrivals but I am not equipped to provide long term warranty on these builds.

Full specs listed below:

StealthMiner JPro+ Specifications

Version	StealthMiner JPro+
Crypto Algorithm	SHA256
Hashrate, TH/s	20-32
power on wall@22℃, Watt	500-800 ±10%
Power efficiency on wall @25°C, J/TH	24-26 ±5%
Noise level, dB	<60

Power Supply
Power supply AC input voltage, Volt (1-1)	115-240
Power supply AC Input Frequency Range, Hz	47-63
Power supply AC Input current, Amp (1-2)	12(1-3)
Hardware Configuration
Network connection mode	RJ45 Ethernet 10/100M
Miner Size (LengthWidthHeight, w/o package), mm(2-1)	300 (11.81”) x 300 (11.81”) x 146 (5.75”)
Gross weight, kg	7.26 (16 lbs)
Environment Requirements
Operation temperature, °C	0~45
Storage temperature, °C	-40~85
Operation humidity(non-condensing), RH	10~90%
Operation altitude, m (3-1)	≤2000
