Print your own StealthMiner. (* For personal use only)

300mm x 300mm build volume required

I suggest PETG, ABS, ASA, and Nylon as base materials. PLA will most certainly warp with heat after printed and ABS, ASA, Nylon range will be a bitch to print without warp.

PETG is the material to use.

Additional supplies required to assemble

(1x) Bitmain Hashboard
- *S19 88-chip is too long and not compatible
(1x) Control Board
- Xilinx, AMLogic, BeagleBone I/O plates available
(1x) Loki Kit
- ensure correct kit for the control board and firmware you plan on using
(1x) APW3++ PSU
- Stock fan is loud and you can silence it 2 ways:
  - Simple fan resistor on the stock fan
    - Part of Kit: https://structur3.io/products/loki-rig-cable-kit-6awg
  - Noctua NF-A6x25 + 2-pin Adapter
(1x) 6 pin PCI connector and 6" wire with ring terminals
- Provides control board power
- Part of Kit: https://structur3.io/products/loki-rig-cable-kit-6awg
(2x) 20" 6 AWG Pure Copper cable
- 3/16 inch (#10)(M5) ring terminals recommended
- Part of Kit: https://structur3.io/products/loki-rig-cable-kit-6awg
(23x) M5x10 Computer PC Case Fan Screws
- Used to secure fans to lid and I/O plate to bottom section and PSU
(4x) M2x6mm screws
- Secures control board in place, but not required
(4x) Rubber feet
- Caps bolt holes on bottom and provides stable footing
(4x) 1/4"-20 x 4-1/2'' Bolts
- These work: https://amzn.to/4aLMYz9
- These work: https://amzn.to/4hh03Tp
(1x - OPTIONAL) 5.5 x 2.1mm barrel jack (10A)
- Can provide power to WiFi Bridge or Bitaxe
  - If powering a Bitaxe, you will want a 10A buck converter

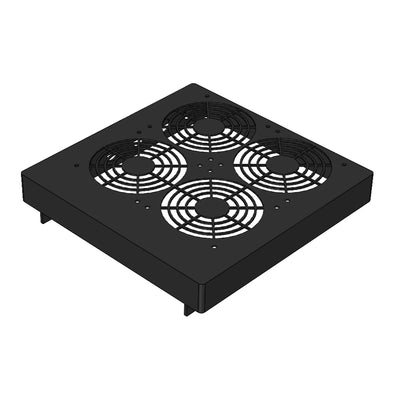

StealthMiner (STL Pack)
